How to Build Large-Scale Model Airplane Kits That Don’t Crack, Warp, or Collapse

Large-scale model airplanes look spectacular — right up until a seam splits, a wing sags, or the model tips onto its tail. Here’s the proven, step-by-step path to structural integrity, from wing reinforcement to nose weighting.

Building large-scale model airplanes — the 1/32, 1/24, and occasionally 1/20 kits that dominate a display shelf — is a different discipline from snapping together a 1/72 fighter over a weekend. These kits sit in a technical tier above 1/48 and 1/72, and they punish the same shortcuts that pass without complaint at smaller scales. The reason is physics, not skill: plastic thickness and gluing-surface width don’t scale up proportionally with the kit. A 1/32 Spitfire or P-51 with a 13-inch wingspan is a physically large, heavy object, and its weight is real, not scale. The seam that would cure rock-solid at 1/72 can crack under its own weight or the first time you pick the model up, because the unsupported span is longer and the mass of the plastic shell is greater. Wings sag. Landing gear folds. A large-scale kit also represents real money and many hours at the bench, which makes those mistakes expensive ones. What follows isn’t cosmetic finishing advice — it’s a sequenced, tested process for structural integrity, written for the modeler who has just cracked open a first 1/32 kit and found the instructions silent on everything that actually matters.

What You’ll Need

Gather everything before you cut a single part from the sprue.

Skill level and time. Treat this as an intermediate-friendly build rather than a pure first project. The techniques are learnable by a dedicated beginner, but the step count and patience required set it apart from a shake-the-box weekend kit. A 1/32 kit that might assemble in around 20 hours at 1/48 speed can run 30 to 40 hours once you add reinforcement, pinning, and weighting. Those extra steps aren’t optional luxuries — they are what prevents the three failure modes named in the headline.

Adhesives.

• Thin liquid cement (such as Tamiya Extra Thin) for capillary seam bonding
• Standard liquid cement for large flat mating surfaces
• Cyanoacrylate (CA, or superglue) in thin, medium, and thick, for fast non-structural bonds, seam filling, and fixing weights in the nose
• Five-minute two-part epoxy for structural, load-bearing joints

Reinforcement materials.

• Evergreen styrene strip stock, in the .020″–.040″ thickness range
• Brass rod, 1mm diameter as a baseline

Tools.

• Sanding sticks or wet-and-dry sandpaper, 320–600 grit
• A hobby knife with fresh No. 11 blades
• Tweezers (medical-quality, not too long)
• Rubber bands, clothespins or spring clamps (Irwin Quick Grip and similar), and masking tape
• A pan you can heat water to roughly 180°F in
• A pin vise and a fine set of drill bits (in the 60–80 range) for brass-rod pins

Optional.

• Nose-weight material: split-shot fishing sinkers, or fine bird shot (#7 or #9)
• Resin-specific supplies (degassing, primer) if your kit includes resin detail parts

Step 1 — Evaluate the Kit’s Engineering Before You Start

Before you open a single bottle of glue, read the instructions all the way through and give the major assemblies a hard look. This is where you spot the structural traps that large-scale sets and small-scale forgives.

Check three things specifically. First, the width of the gluing flanges on the fuselage halves and wings; a narrow flange that’s acceptable at small scale now has to carry more weight over a longer lever arm. Second, whether the kit provides locating pins, and whether they’re accurately positioned — misaligned pins force the mating surfaces apart and create a stress concentration that can crack the model after assembly. Third, whether any resin or white-metal parts are included that will add weight at load-bearing locations.

While you’re at it, inspect the sprues for sink marks, flash, and mold-release residue. Wash all the parts in mild dish detergent, rinse thoroughly, and let them dry completely before any adhesive work. Many experienced builders consider flat-sanding the mating surfaces of the fuselage halves on sandpaper laid over glass the most reliable way to get a tight, gap-free fit. That sanding also removes the locating pins — an acceptable trade-off for a better seam on a large assembly.

Step 2 — Dry-Fit Every Major Assembly First

Dry-fitting — test-fitting parts with no glue — is non-negotiable on a large-scale kit, described by experienced builders again and again as an absolute must. The two rules that matter most here are simple: don’t rush, and check and double-check the fit of every single part.

Use masking tape to hold the fuselage halves together, and tape the wing halves the same way. A proper dry-fit reveals the problems that are cheap to fix now and destructive to fix later: gaps at the fuselage nose, tail, and spine; misaligned locating pins that force the mating surfaces apart; uneven gluing flanges that will leave gaps; a gap or mismatched fillet at the wing root; a cockpit floor or instrument panel too wide to let the fuselage close; and a dihedral mismatch where one wing sits higher than the other when taped. Sight down the leading and trailing edges from nose to tail to catch any warp — this is the moment to flag which parts need the hot-water treatment in Step 3. Mark every problem area with a pencil or a scrap of tape so it isn’t forgotten once assembly starts.

Step 3 — Straighten Warped Parts Before Assembly

Wings and solid tail surfaces warp most readily, because their cross-section is thin. A warped fuselage or wing half is also a common cause of a bad fit; in many cases you can pull it into line while cementing, but in others you’ll have to use warm water to bend it straight.

The hot-water method is the standard fix for a solid warped part: Heat a pan of water until it’s hot but not boiling, dunk the warped part for a few seconds — three to five is a reasonable starting point — then remove it and bend it against the warp until it cools, repeating as needed until the part holds straight. Thicker parts want a longer dunk; the same method works on warped fuselage halves.

Where you apply pressure matters as much as the heat. Thinner sections soften faster than thick ones, so trailing edges and tips will go soft first — apply pressure only at the thickest part of the chord, never at the edges, or you risk a wavy trailing edge or bent tip. A hair dryer is a workable alternative for smaller warps or sections you can’t submerge; apply heat while bending against the warp and hold until cool, watching that you don’t overheat and distort fine detail. Resin parts respond to hot water too, but hold them until fully cooled — resin has a shape memory and will spring back if released early.

Not every modeler favors heat. Some report poor results and prefer a purely mechanical fix: apply liquid cement to both surfaces, assemble, clamp the part against a rigid straight-edge, and cure overnight. Both approaches are valid; the deciding variable is the severity of the warp. Mild-to-moderate warps often yield to mechanical clamping, while severe warps usually need heat first.

Step 4 — Reinforce Wings and Fuselage Interiors With Plastic Strip Lamination

This is the core anti-cracking technique for a large build. Gluing Evergreen styrene strip to the interior faces of the wings and fuselage halves creates a structural rib that stops the center-span flexing that fractures seams. It’s always worth reinforcing parts like these so they’re firmly secured to the plastic — if you’re adding a new nose piece, or cutting out and replacing a center section of a fuselage or wing, run a strip of Evergreen stock around the inside perimeter of the kit to create a larger gluing surface.

For wings, run the strips leading edge to trailing edge, or tip to centerline — orient them to cross-brace whichever direction is most likely to flex. For fuselage halves, laminate strips top-to-bottom or front-to-back along the interior faces, parallel to the eventual seam line. That widens the effective gluing surface and braces the shell against the flexural loads of handling. Evergreen Scale Models is the foremost producer of polystyrene strips and shapes for model makers, and their strips are standard at U.S. hobby retailers; the .020″–.040″ range covers most reinforcement work.

The same logic scales up to heavy hanging parts such as wing tip tanks, which can be reinforced by filling the wing tip with resin or superglue and setting lengths of brass wire into the connection points — a simple trick that keeps heavy add-ons from breaking off. Glue the strips with liquid cement or thin CA, and give the lamination an overnight cure before you proceed.

Step 5 — Choose the Right Adhesive for Each Joint

Different joints demand fundamentally different adhesives, and using the wrong one is among the most common causes of structural failure on a large build. The key is understanding what each adhesive actually does.

Solvent-based plastic cements — thin, standard, and extra-thin — chemically weld polystyrene. They melt the mating surfaces and fuse them; they aren’t glue in the conventional sense. That makes them ideal for seams and flat plastic-to-plastic joins, and wrong for non-polystyrene parts or for structural joints that carry real weight. Cyanoacrylate bonds on contact and is excellent for fast, non-structural work and for attaching metal, resin, or photoetch to plastic, though it makes a more brittle joint under flex than solvent cement. Five-minute two-part epoxy is the correct choice for structural, load-bearing joints — landing gear mounts and heavy sub-assemblies — because it doesn’t soften the plastic and cures to a rigid, high-strength bond. Cyanoacrylate cement is useful for bonding warped fuselages, filling seams, and correcting scribing errors, while five-minute epoxy earns a reputation among builders as the fix for when everything else fails.

A working decision guide: standard liquid cement for the large flat fuselage seams, applied by capillary action; thin liquid cement for the interior lamination strips; thin CA to fill seams, thick gap-filling CA for larger voids; five-minute epoxy for landing-gear attachment; CA for solid nose weights and epoxy for lead shot packed into the nose; CA for resin and photoetch; and white glue or a specialized clear-parts adhesive for canopies, since CA fogs clear plastic and solvent cement crazes it. CA thickness follows one rule: thin CA works only where two surfaces sit in intimate contact, and since most kit joints leave at least a small gap, reach for thicker CA whenever the glue has to bridge any gap at all. When using CA as a filler, skip the accelerator, which can craze the CA surface in a way that shows under paint.

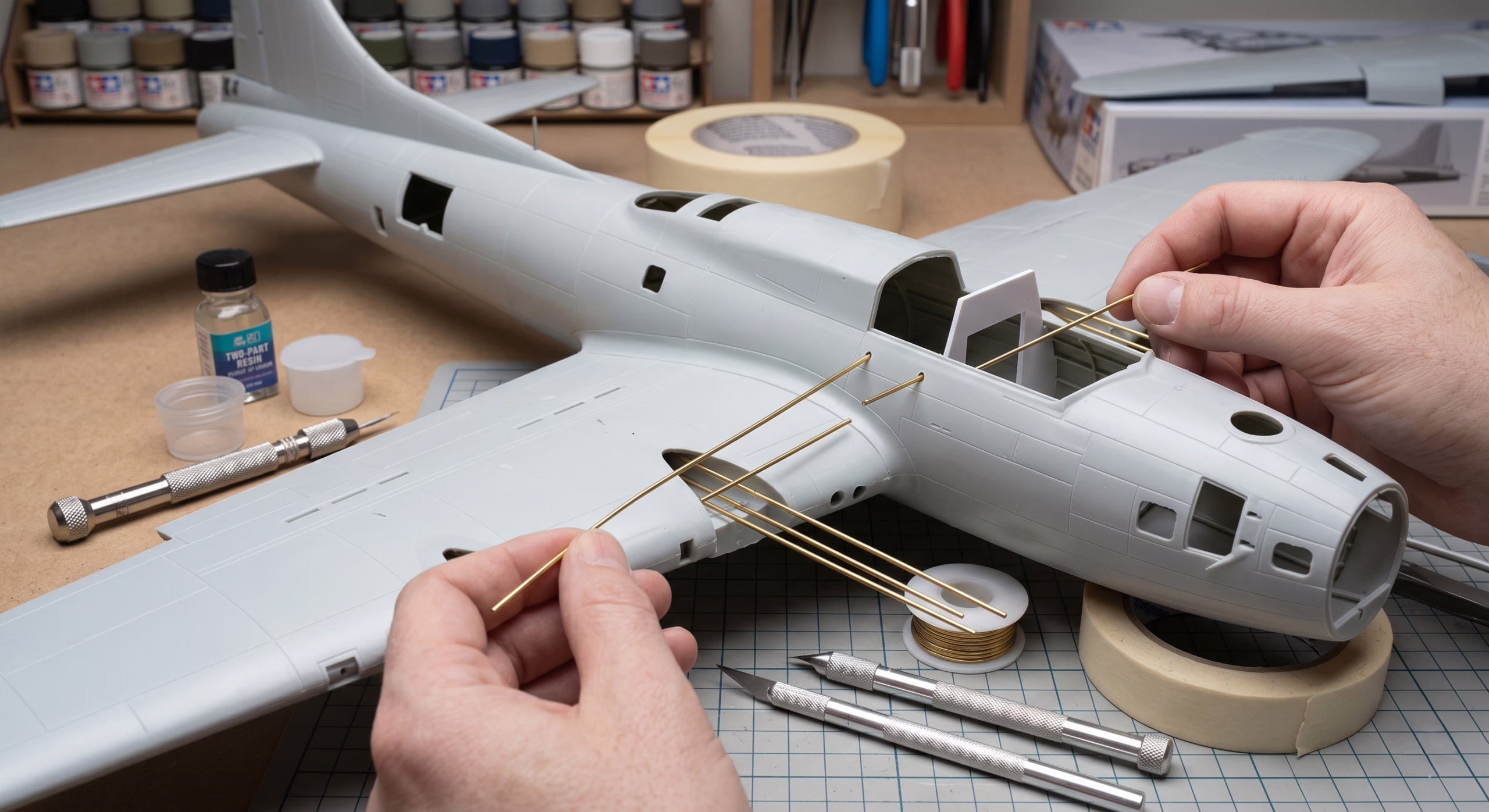

Step 6 — Pin Load-Bearing Joints With Brass Rod

Brass rod, drilled and embedded through a joint, gives you mechanical strength that is completely independent of the adhesive bond — it survives handling even if the glue lets go. Reach for rod, not wire: as FineScale Modeler contributor Greg Hildebrandt documented in a 2024 how-to piece, “You’ll want to purchase a 1mm brass rod from a hobby shop or hardware store. Although you may be tempted to use rolled brass wire, you’ll never be able to straighten it enough for this use.”

Pin the joints that carry load: wing roots, horizontal tail attachment points, a separate vertical fin, landing gear mounts, and any heavy external stores such as wing tip tanks. The technique is straightforward. Drill matching holes into the mating surfaces before assembly, shape the rod to the joint, tape it in position, and apply thin CA to the contact points. Allow a full overnight cure without accelerator before removing the tape, then cement or epoxy the joint as normal — the rod and the adhesive work together. This same idea shows up in practice: on a Classic Airframes 1/48-scale de Havilland Venom, for example, the wing-tip tanks were drilled and pinned with short lengths of steel wire, with locating holes drilled into the mating surfaces at the wing-tip edges to aid alignment and reinforce the joint.

Always drill with a pin vise, never a power tool, which spins too fast and melts the plastic instead of cutting it cleanly. On wing-root pins, drilling the hole slightly undersized and press-fitting the rod reduces rocking under load.

Step 7 — Balance the Model Before Final Assembly

Here is the “collapse” failure mode in the headline, and it’s entirely preventable. Aircraft with tricycle landing gear — a nose wheel plus two main legs — will tail-sit unless you add nose weight. It’s a blunt fact of the hobby: tricycle landing gear isn’t hard to work with, but it does demand planning ahead — tape the major parts of a first tricycle-geared build together and, unless it’s a modern jet with the main gear set well aft, the model will tip onto its tail.

You have to find the balance point before the fuselage is permanently closed, while the interior is still accessible. The method: with the model still taped together, find the balance point at the main-gear axle line. Tape the main gear in place if it will hold steady once weight is added, and if the nose is enclosed, start by taping weight to the outside near where it will eventually hide inside. Once the nose tips forward and stays down, add a little extra for insurance.

Use as little weight as you can get away with, and put it as far forward as possible. Overloaded gear looks bowlegged and won’t pass muster at a contest table, so use the minimum weight that keeps the nose down — and remember, the farther forward you place it, the less you’ll need. Solid fishing sinkers can be fixed with CA; fine bird shot mixed into five-minute epoxy conforms to any cavity — the classic fix for a glass-nosed bomber with limited space. One point of disagreement worth knowing: some builders favor CA for solid lead weights, while some modelers report a corrosive CA-and-lead reaction and prefer another adhesive. If you use CA with lead, check for any surface reaction before closing the fuselage.

Step 8 — Reinforce or Upgrade the Landing Gear

It surprises many beginners, but kit-supplied plastic gear legs generally hold up better than soft white-metal replacements under the real weight of a large-scale model. Here’s a word of caution: white-metal landing gear generally isn’t as strong as injection-molded plastic gear, and it can sag over time — though not always; it depends on the metal’s thickness, the model’s weight, and the specific alloy used.

Whatever gear you use, attach it with five-minute epoxy — never solvent cement, which softens the polystyrene at the bond and leaves a weak joint that sags or snaps under weight. Builders in online modeling forums confirm the same practice — gluing in a brass pin with superglue or epoxy, then setting it with a generous bead of epoxy in the landing gear wells. You can reinforce a leg with brass rod directly: shape a rod to the inside of the leg, tack it with thin CA, and build up medium CA in layers to smooth the transition.

For a very heavy build — a multi-engine model, or a kit loaded with resin — consider a museum-style display stand (an acrylic pillar or a custom base) rather than asking the gear to carry full weight on the shelf. And before the legs go on for good, paint the oleo — the shock-absorber section — a bright silver; it reads clearly on a displayed model.

Step 9 — Clamp and Cure Joints Under Real Pressure

Even, adequate clamping pressure matters more on a big model than a small one, because the weight of the parts themselves can shift them during the cure if they aren’t held. Clamps act as an extra pair of hands — or two or three — when you glue together major assemblies like fuselages and wings. Glue big assemblies in stages, cementing and clamping one section at a time until the glue has set.

Match the clamp to the joint. Masking tape under tension works for fuselage and wing seams during a cement cure — apply it in multiple passes and check alignment before it sets. Rubber bands give even circumferential pressure on fuselage halves and wing assemblies; use several for a long span. Clothespins and spring clamps deliver high localized pressure at fin and tail-surface roots. Quick Grip clamps handle the big fuselage halves with adjustable, gentle pressure.

A warped part you couldn’t fully correct with heat gets a second chance here: apply cement to both surfaces, allow about 10 to 15 seconds for it to activate, mate the parts, then clamp against a rigid straight-edge and cure overnight. Waiting the full cure before you handle the model matters far more at large scale, where a newly glued seam is much likelier to split.

Step 10 — Finish Seams Without Undoing Your Reinforcement

With the fuselage and wings fully cured and the seams filled, progressive sanding takes the joints down to a paint-ready surface. Wait until the next day, cover the cockpit opening with tape to keep sanding dust out, then sand off the excess plastic along the seams with a sanding block wherever possible. Go gently: if the little bubbles in the plastic bead break off, the break usually happens below the surface, leaving pits you’ll have to putty later.

Work up through the grits: start at 320–400 to knock down the bead and bulk, move to 600 for smoothing, and finish with 800–1,000 wet-and-dry before priming; 0000 steel wool polishes engraved panel lines. Always back the paper with a sanding block — bare sandpaper follows every surface irregularity and can’t produce a truly flat seam. For stubborn gaps or pits, the CA fill method beats putty: flow thin CA into the gap, let it set without accelerator, and sand once cured; use thick gap-filling CA for larger voids.

One warning that ties the whole build together: don’t sand through the structural styrene lamination you added in Step 4. The strips are on the interior, but over-aggressive exterior sanding can thin the wall enough to undo the structural benefit. When seam work is done, shoot the whole model with gray primer — it’s the final detector for cracks, imperfections, and scratches, throwing every remaining void into relief against a uniform color. Sand, fill, and re-prime as needed rather than pressing on over a flawed surface.

Tips and Warnings

Troubleshooting: Common Mistakes and How to Fix Them

A seam cracked after assembly. The usual causes are a gluing surface too narrow for the load, a fuselage flexed before the cement fully cured, or a drop. If the interior is still accessible, run a bead of thick CA or five-minute epoxy along the inside of the crack and clamp until set, then fill the exterior crack with thin CA, let it cure, sand smooth, and prime. If the interior is sealed, fill the exterior crack with CA gel and sand. Retrofitting a styrene lamination strip over the crack from outside — then filling and sanding flush — is possible but labor-intensive.

The model still tail-sits after weighting. Either you added too little nose weight, or the balance point was measured wrong and the main gear is farther aft than you thought. Re-tape the model, find the true axle line of the main gear, and place the weight as far forward as the design allows — not just inside the nose cone. On glass-nosed bombers, radio compartments, bomb bays, and other spaces forward of the main gear are all fair game, and you can add weight now if those spaces are still open.

A gear leg is bowing under the model’s weight. This is almost always the wrong adhesive (cement instead of epoxy) or white metal fatiguing. Carefully remove the leg — solvent can soften the joint enough to reopen it — clean both surfaces, re-attach with five-minute epoxy, and prop the model level while it cures. A bent white-metal leg can be straightened gently with flat-nose pliers, since white metal is flexible. For persistent sag, add a display stand to take weight off the legs in storage and on the shelf.

Verification and Conclusion

Three quick tests confirm the structural work is sound. First, the balance test: the model stands unsupported on its own gear without tail-sitting, the nose wheel contacting the surface under the model’s own weight. Second, the seam-integrity test: holding the model firmly, apply gentle thumb pressure along the major seams — the fuselage spine and wing roots — and confirm they don’t flex visibly or crack audibly. Third, the gear-integrity test: the legs don’t bow noticeably under weight, and the model keeps its correct ground stance after sitting on a flat surface for 24 hours.

Pass all three and the structure is done. Now the model can move on to priming, color, decals, and weathering without the risk of a structural failure undoing hours of finishing work. That’s the whole payoff: a large-scale build that survives handling and display is a piece you can be proud of for years. Get the bones right first, and every hour you spend on the finish afterward is time well spent.

FAQ

How do I stop the seams on a large-scale model airplane from cracking after I glue them?

Preventing seam cracks on a large-scale model airplane starts with widening the interior gluing surface before you apply any adhesive. The load, not the glue, is what breaks these seams.

• Laminate Evergreen styrene strip to the inside faces of the wings and fuselage halves before assembly to widen the gluing surface.
• Apply liquid cement by capillary action so the whole seam makes contact.
• Clamp the joint under even pressure while it cures.
• Allow a full overnight cure before you handle the model.
• If a seam has already cracked, fill it from inside with CA or epoxy where accessible, then fill the exterior with CA gel, sand, and re-prime.

What is the exact process for straightening a warped wing or fuselage half?

The exact process for straightening a warped wing or fuselage half depends on the severity of the warp — moderate warps respond to mechanical clamping, and severe warps require heat treatment first.

• For a severe warp: heat a pan of water until it’s hot but not boiling, dunk the part for three to five seconds, bend it against the warp, and hold until cool. Repeat until it stays straight.
• Apply pressure only at the thickest section of the chord — never at the thin trailing edge or tip, which will wave.
• For a moderate warp: apply liquid cement to both mating surfaces, assemble with the warp forced straight, clamp against a rigid straight-edge, and cure overnight.
• A hair dryer works for small warps or sections you can’t submerge.

Why does my large-scale model tip backward onto its tail, and how do I fix it?

A large-scale model airplane tips backward because its center of mass sits behind the main landing gear axle — the fix is adding nose weight as far forward in the fuselage as the kit design allows. This is standard for tricycle-gear aircraft.

• Tape the major assemblies together and find the balance point at the main gear axle line.
• Tape weight to the outside of the fuselage near where it will hide inside.
• When the nose stays down, add a little more for insurance.
• Fix solid weights with CA; encapsulate bird shot in five-minute epoxy.

Should I use super glue or epoxy for a large-scale model’s landing gear?

Use five-minute two-part epoxy — never plastic cement — to attach landing gear on a large-scale model airplane; only epoxy makes a joint strong enough to carry the model’s full weight without slowly bowing or collapsing.

• Epoxy for attaching gear struts to the airframe: it doesn’t soften polystyrene and cures rigid.
• CA is acceptable and fast for solid nose weights inside the fuselage, though some modelers note a possible CA-and-lead corrosion reaction.
• Never use solvent plastic cement on gear: it softens the plastic at the bond and the joint bows or collapses over time.

How much weight does a large-scale model airplane need in the nose to sit level?

The exact nose weight a large-scale model airplane needs can’t be specified in advance — you find it empirically by taping the model together, locating the balance point at the main gear axle, and adding weight until the nose tips forward. It varies with wingspan, fuselage length, kit material, and added detail.

• Tape the model together and balance it at the main gear axle line.
• Add weight until the nose just tips forward, then add a little more for insurance.
• Place weight as far forward as possible — the longer the lever arm, the less weight you need.
• Use split-shot sinkers or bird shot; for tight glass noses, fine #9 shot mixed with five-minute epoxy conforms to any cavity.
